概述
我们使用 docker compose 来安装 ClickHouse
但我们不是裸装 ClickHouse，实际上我们安装的是 ClickStack。有点儿像 elastic-stack 与 elastic search 的关系 ，但并不完全一样。
ClickStack 是基于 ClickHouse 构建的完整观察性平台，集成了日志、指标、追踪和会话回放功能，提供统一的用户界面和查询能力。因此，ClickStack 是在 ClickHouse 的基础上，结合 HyperDX 提供的前端界面和 OpenTelemetry Collector 实现的完整解决方案。它不仅仅是一个数据库，而是一个集成的观察性平台。
安装步骤参考官方文档：https://clickhouse.com/docs/zh/use-cases/observability/clickstack/getting-started?loc=use-case-observability
安装
克隆 HyperDX 仓库
1git clone https://github.com/hyperdxio/hyperdx.git
2
3cd hyperdx
4
5# switch to the v2 branch
6git checkout v2
根据自身情况修改配置文件 .env
我将 HDX_IMAGE_REPO=docker.hyperdx.io 修改为 HDX_IMAGE_REPO=docker.io 不然镜像拉不下来
1# Used by docker-compose.yml
2HDX_IMAGE_REPO=docker.hyperdx.io
3IMAGE_NAME=ghcr.io/hyperdxio/hyperdx
4IMAGE_NAME_DOCKERHUB=hyperdx/hyperdx
5LOCAL_IMAGE_NAME=ghcr.io/hyperdxio/hyperdx-local
6LOCAL_IMAGE_NAME_DOCKERHUB=hyperdx/hyperdx-local
7ALL_IN_ONE_IMAGE_NAME=ghcr.io/hyperdxio/hyperdx-all-in-one
8ALL_IN_ONE_IMAGE_NAME_DOCKERHUB=hyperdx/hyperdx-all-in-one
9OTEL_COLLECTOR_IMAGE_NAME=ghcr.io/hyperdxio/hyperdx-otel-collector
10OTEL_COLLECTOR_IMAGE_NAME_DOCKERHUB=hyperdx/hyperdx-otel-collector
11CODE_VERSION=2.0.5
12IMAGE_VERSION_SUB_TAG=.0.5
13IMAGE_VERSION=2
14IMAGE_NIGHTLY_TAG=2-nightly
15IMAGE_LATEST_TAG=latest
16
17# Set up domain URLs
18HYPERDX_API_PORT=8000 #optional (should not be taken by other services)
19HYPERDX_APP_PORT=8080
20HYPERDX_APP_URL=http://localhost
21HYPERDX_LOG_LEVEL=debug
22HYPERDX_OPAMP_PORT=4320
23
24# Otel/Clickhouse config
25HYPERDX_OTEL_EXPORTER_CLICKHOUSE_DATABASE=default
docker compose 启动
1docker-compose up -d
Docker-compose 文件如下：
1name: hdx-oss
2services:
3 # ONLY USED FOR DEMO SSL SETUP
4 # nginx:
5 # image: nginx:1.27.3
6 # volumes:
7 # - ./docker/nginx/nginx.conf:/etc/nginx/nginx.conf
8 # - ./docker/nginx/ssl:/etc/nginx/ssl
9 # - .volumes/nginx_logs:/var/log/nginx
10 # ports:
11 # - 80:80
12 # - 443:443
13 # networks:
14 # - internal
15 # depends_on:
16 # - app
17 db:
18 image: mongo:5.0.14-focal
19 volumes:
20 - .volumes/db:/data/db
21 # WARNING: Exposing the database port will make it accessible from outside the container,
22 # potentially allowing unauthorized access. If you uncomment the ports below,
23 # ensure to secure your database (e.g., with strong authentication, proper network rules, and firewalls).
24 # ports:
25 # - 27017:27017
26 networks:
27 - internal
28 otel-collector:
29 image: ${HDX_IMAGE_REPO}/${OTEL_COLLECTOR_IMAGE_NAME_DOCKERHUB}:${IMAGE_VERSION}
30 environment:
31 CLICKHOUSE_ENDPOINT: 'tcp://ch-server:9000?dial_timeout=10s'
32 HYPERDX_OTEL_EXPORTER_CLICKHOUSE_DATABASE: ${HYPERDX_OTEL_EXPORTER_CLICKHOUSE_DATABASE}
33 HYPERDX_LOG_LEVEL: ${HYPERDX_LOG_LEVEL}
34 OPAMP_SERVER_URL: 'http://app:${HYPERDX_OPAMP_PORT}'
35 ports:
36 - '13133:13133' # health_check extension
37 - '24225:24225' # fluentd receiver
38 - '4317:4317' # OTLP gRPC receiver
39 - '4318:4318' # OTLP http receiver
40 - '8888:8888' # metrics extension
41 restart: always
42 networks:
43 - internal
44 depends_on:
45 - ch-server
46 app:
47 image: ${HDX_IMAGE_REPO}/${IMAGE_NAME_DOCKERHUB}:${IMAGE_VERSION}
48 ports:
49 - ${HYPERDX_API_PORT}:${HYPERDX_API_PORT}
50 - ${HYPERDX_APP_PORT}:${HYPERDX_APP_PORT}
51 environment:
52 FRONTEND_URL: ${HYPERDX_APP_URL}:${HYPERDX_APP_PORT}
53 HYPERDX_API_KEY: ${HYPERDX_API_KEY}
54 HYPERDX_API_PORT: ${HYPERDX_API_PORT}
55 HYPERDX_APP_PORT: ${HYPERDX_APP_PORT}
56 HYPERDX_APP_URL: ${HYPERDX_APP_URL}
57 HYPERDX_LOG_LEVEL: ${HYPERDX_LOG_LEVEL}
58 MINER_API_URL: 'http://miner:5123'
59 MONGO_URI: 'mongodb://db:27017/hyperdx'
60 NEXT_PUBLIC_SERVER_URL: http://127.0.0.1:${HYPERDX_API_PORT}
61 OPAMP_PORT: ${HYPERDX_OPAMP_PORT}
62 OTEL_SERVICE_NAME: 'hdx-oss-api'
63 USAGE_STATS_ENABLED: ${USAGE_STATS_ENABLED:-true}
64 DEFAULT_CONNECTIONS:
65 '[{"name":"Local
66 ClickHouse","host":"http://ch-server:8123","username":"default","password":""}]'
67 DEFAULT_SOURCES:
68 '[{"from":{"databaseName":"default","tableName":"otel_logs"},"kind":"log","timestampValueExpression":"TimestampTime","name":"Logs","displayedTimestampValueExpression":"Timestamp","implicitColumnExpression":"Body","serviceNameExpression":"ServiceName","bodyExpression":"Body","eventAttributesExpression":"LogAttributes","resourceAttributesExpression":"ResourceAttributes","defaultTableSelectExpression":"Timestamp,ServiceName,SeverityText,Body","severityTextExpression":"SeverityText","traceIdExpression":"TraceId","spanIdExpression":"SpanId","connection":"Local
69 ClickHouse","traceSourceId":"Traces","sessionSourceId":"Sessions","metricSourceId":"Metrics"},{"from":{"databaseName":"default","tableName":"otel_traces"},"kind":"trace","timestampValueExpression":"Timestamp","name":"Traces","displayedTimestampValueExpression":"Timestamp","implicitColumnExpression":"SpanName","serviceNameExpression":"ServiceName","bodyExpression":"SpanName","eventAttributesExpression":"SpanAttributes","resourceAttributesExpression":"ResourceAttributes","defaultTableSelectExpression":"Timestamp,ServiceName,StatusCode,round(Duration/1e6),SpanName","traceIdExpression":"TraceId","spanIdExpression":"SpanId","durationExpression":"Duration","durationPrecision":9,"parentSpanIdExpression":"ParentSpanId","spanNameExpression":"SpanName","spanKindExpression":"SpanKind","statusCodeExpression":"StatusCode","statusMessageExpression":"StatusMessage","connection":"Local
70 ClickHouse","logSourceId":"Logs","sessionSourceId":"Sessions","metricSourceId":"Metrics"},{"from":{"databaseName":"default","tableName":""},"kind":"metric","timestampValueExpression":"TimeUnix","name":"Metrics","resourceAttributesExpression":"ResourceAttributes","metricTables":{"gauge":"otel_metrics_gauge","histogram":"otel_metrics_histogram","sum":"otel_metrics_sum","_id":"682586a8b1f81924e628e808","id":"682586a8b1f81924e628e808"},"connection":"Local
71 ClickHouse","logSourceId":"Logs","traceSourceId":"Traces","sessionSourceId":"Sessions"},{"from":{"databaseName":"default","tableName":"hyperdx_sessions"},"kind":"session","timestampValueExpression":"TimestampTime","name":"Sessions","displayedTimestampValueExpression":"Timestamp","implicitColumnExpression":"Body","serviceNameExpression":"ServiceName","bodyExpression":"Body","eventAttributesExpression":"LogAttributes","resourceAttributesExpression":"ResourceAttributes","defaultTableSelectExpression":"Timestamp,ServiceName,SeverityText,Body","severityTextExpression":"SeverityText","traceIdExpression":"TraceId","spanIdExpression":"SpanId","connection":"Local
72 ClickHouse","logSourceId":"Logs","traceSourceId":"Traces","metricSourceId":"Metrics"}]'
73 networks:
74 - internal
75 depends_on:
76 - ch-server
77 - db
78 ch-server:
79 image: clickhouse/clickhouse-server:24-alpine
80 # WARNING: Exposing the database port will make it accessible from outside the container,
81 # potentially allowing unauthorized access. If you uncomment the ports below,
82 # ensure to secure your database (e.g., with strong authentication, proper network rules, and firewalls).
83 ports:
84 - 8123:8123 # http api
85 - 9050:9000 # native
86 # environment:
87 # default settings
88 # CLICKHOUSE_DEFAULT_ACCESS_MANAGEMENT: 1
89 volumes:
90 - ./docker/clickhouse/local/config.xml:/etc/clickhouse-server/config.xml
91 - ./docker/clickhouse/local/users.xml:/etc/clickhouse-server/users.xml
92 - ./empty.xml:/etc/clickhouse-server/users.d/default-password.xml
93 - .volumes/ch_data:/var/lib/clickhouse
94 - .volumes/ch_logs:/var/log/clickhouse-server
95 restart: on-failure
96 networks:
97 - internal
98networks:
99 internal:
注意：environment 部分我注释掉了，另外 加了一行：./empty.xml:/etc/clickhouse-server/users.d/default-password.xml 作用是解决 clickhouse 连接异常的问题。
通过 /data/clickhouse/hyperdx/docker/clickhouse/local/users.xml 可以看到 clickhouse 的账户信息：
1<?xml version="1.0"?>
2<clickhouse>
3 <profiles>
4 <default>
5 <max_memory_usage>10000000000</max_memory_usage>
6 <use_uncompressed_cache>0</use_uncompressed_cache>
7 <load_balancing>in_order</load_balancing>
8 <log_queries>1</log_queries>
9 </default>
10 </profiles>
11
12 <users>
13 <default>
14 <password_sha256_hex>2d964690ad5ac2d2f78bebadc30895bc519969ffcef4d3c9e7ff04ee1c765d96</password_sha256_hex>
15 <profile>default</profile>
16 <networks>
17 <ip>::/0</ip>
18 </networks>
19 <quota>default</quota>
20 </default>
21 <api>
22 <password>api</password>
23 <profile>default</profile>
24 <networks>
25 <ip>::/0</ip>
26 </networks>
27 <quota>default</quota>
28 </api>
29 <worker>
30 <password>worker</password>
31 <profile>default</profile>
32 <networks>
33 <ip>::/0</ip>
34 </networks>
35 <quota>default</quota>
36 </worker>
37 </users>
38
39 <quotas>
40 <default>
41 <interval>
42 <duration>3600</duration>
43 <queries>0</queries>
44 <errors>0</errors>
45 <result_rows>0</result_rows>
46 <read_rows>0</read_rows>
47 <execution_time>0</execution_time>
48 </interval>
49 </default>
50 </quotas>
51</clickhouse>
密码用 sha256sum 处理过
可以这样生成：
1echo -n '你的密码' | sha256sum

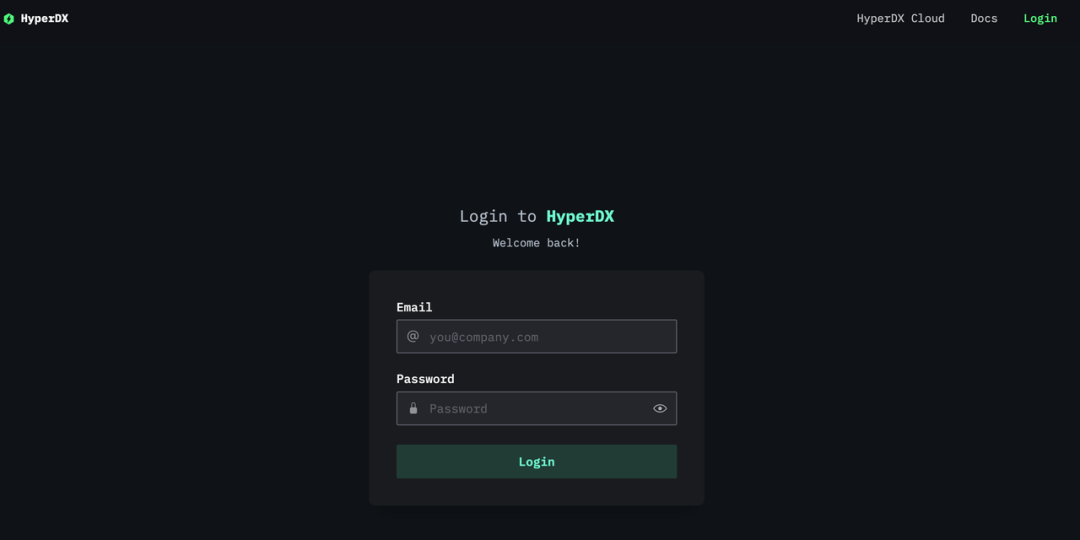

运行

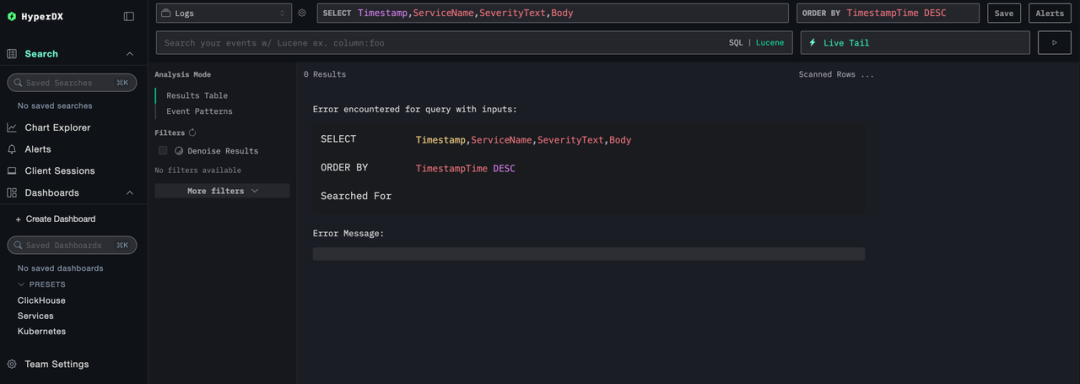

点击登录跳转至首页

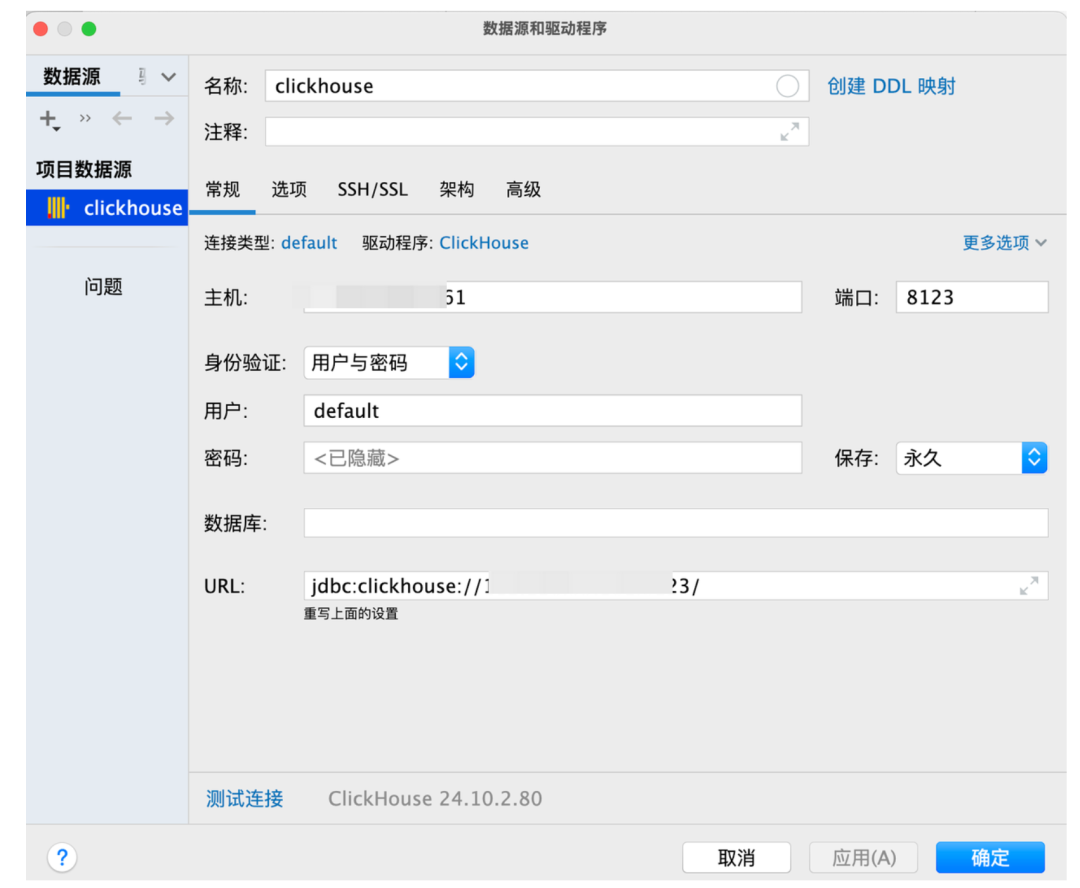

客户端连接
- 用户名：default
- 密码： 你的密码
- 端口：8123
数据库初始化
初始化 sql 脚本
1/* 1. 创建数据库（如已存在可先 DROP DATABASE IF EXISTS testdb） */
2CREATE DATABASE IF NOT EXISTS testdb;
3
4/* 2. 维度表：用户 */
5CREATE TABLE IF NOT EXISTS testdb.users (
6 user_id UInt32,
7 user_name String,
8 signup_date Date
9) ENGINE = MergeTree
10ORDER BY user_id;
11
12/* 3. 维度表：页面 */
13CREATE TABLE IF NOT EXISTS testdb.pages (
14 page_id UInt32,
15 page_url String,
16 category String
17) ENGINE = MergeTree
18ORDER BY page_id;
19
20/* 4. 事实表：页面访问日志 */
21CREATE TABLE IF NOT EXISTS testdb.pageviews (
22 event_date Date,
23 event_time DateTime,
24 user_id UInt32,
25 page_id UInt32,
26 duration UInt32 -- 停留秒数
27) ENGINE = MergeTree
28PARTITION BY toYYYYMM(event_date)
29ORDER BY (event_date, user_id, page_id);
30
31/* 5. 物化视图：每日 PV / UV 聚合 */
32CREATE MATERIALIZED VIEW IF NOT EXISTS testdb.pv_uv_daily
33ENGINE = SummingMergeTree
34PARTITION BY toYYYYMM(event_date)
35ORDER BY event_date
36AS
37SELECT
38 event_date,
39 count() AS pv,
40 uniqExact(user_id) AS uv
41FROM testdb.pageviews
42GROUP BY event_date;
43
44/* 6. 演示数据插入 ---------------------------------------- */
45
46/* 用户维度 */
47INSERT INTO testdb.users (user_id, user_name, signup_date) VALUES
48 (1, 'Alice', '2024-06-01'),
49 (2, 'Bob', '2024-07-15'),
50 (3, 'Cathy', '2024-11-30');
51
52/* 页面维度 */
53INSERT INTO testdb.pages (page_id, page_url, category) VALUES
54 (10, '/home', 'landing'),
55 (11, '/pricing', 'info'),
56 (12, '/blog', 'content');
57
58/* 页面访问日志 */
59INSERT INTO testdb.pageviews (event_date, event_time, user_id, page_id, duration) VALUES
60 ('2025-07-13', '2025-07-13 09:17:00', 1, 10, 35),
61 ('2025-07-13', '2025-07-13 09:18:07', 1, 11, 50),
62 ('2025-07-13', '2025-07-13 09:19:02', 2, 10, 15),
63 ('2025-07-14', '2025-07-14 10:03:45', 3, 12, 120),
64 ('2025-07-14', '2025-07-14 10:05:22', 1, 12, 90);
65
66/* 7. 快速验证 --------------------------------------------- */
67
68/* 查看当前数据库已创建的表 */
69SHOW TABLES FROM testdb;
70
71/* 查询物化视图结果 */
72SELECT * FROM testdb.pv_uv_daily ORDER BY event_date;
73
74/* 联表查询示例 */
75SELECT
76 u.user_name,
77 p.page_url,
78 v.event_time,
79 v.duration
80FROM testdb.pageviews AS v
81LEFT JOIN testdb.users AS u ON v.user_id = u.user_id
82LEFT JOIN testdb.pages AS p ON v.page_id = p.page_id
83ORDER BY v.event_time DESC;
